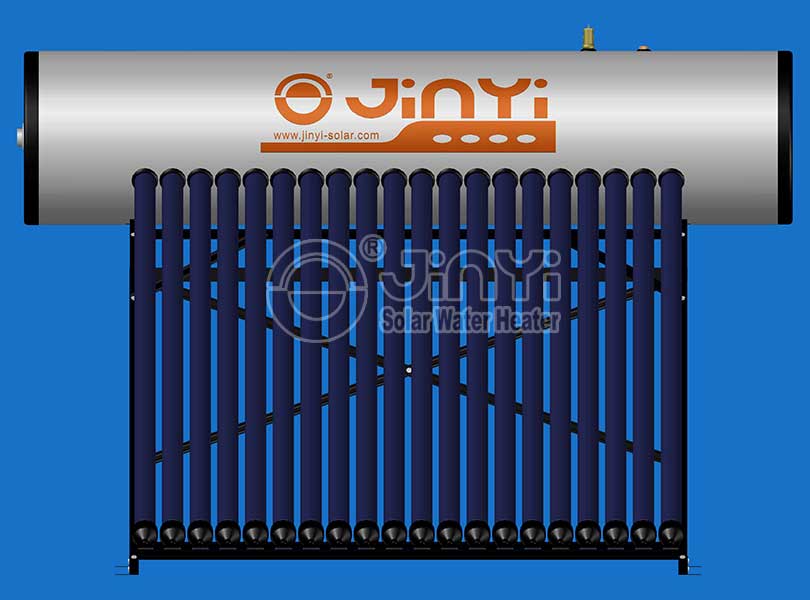

Heat Pipe Solar Water Heater Front View
Heat Pipe Solar Water Heater Southeast

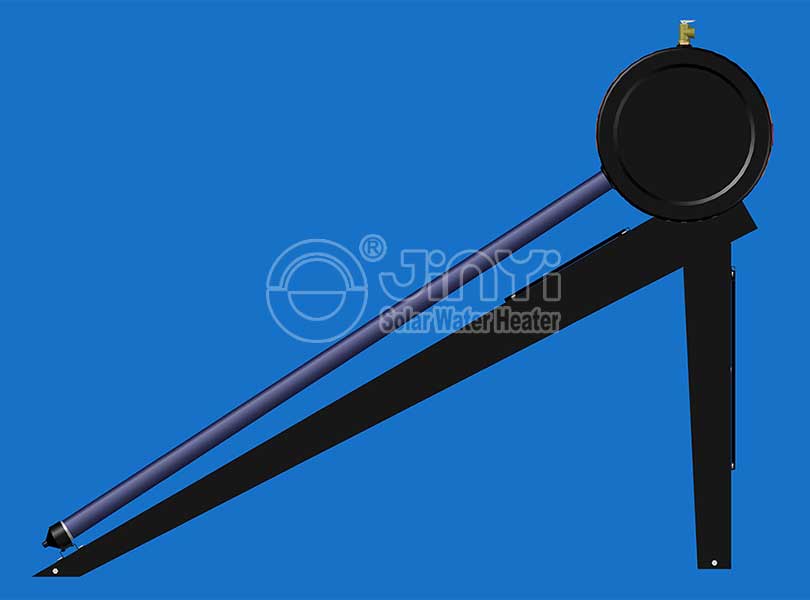

Heat Pipe Solar Water Heater Right View
Solar Keymark Label
Pressurized Solar Water Heater Northeast
Pressurized Solar Water Heater Rear View
Pressurized Solar Water Heater Northwest
Pressurized Solar Water Heater Right View
Heat Pipe Solar Water Heater Southwest
Heat Pipe Solar Water Heater Front View
Heat Pipe Solar Water Heater Southeast
Heat Pipe Solar Water Heater Right View
Solar Keymark Label
Pressurized Solar Water Heater Northeast
Pressurized Solar Water Heater Rear View
Pressurized Solar Water Heater Northwest
Pressurized Solar Water Heater Right View

Heat Pipe Solar Water Heater

Heat pipe solar water heater working principle
Jinyi compact pressure solar water heater is a renovation model for the solar hot water, which adopts advanced heat pipe technology, combines heat pipe solar collector with pressurized tank to form a compact design.
The vacuum tube absorb solar energy and convert solar energy into thermal energy, then transfer to the central heat pipe via the aluminum fin. The heat pipe have tiny amount of purified water sealed inside at depressurized condition. When heated, the water inside the heat pipes vaporizes at low temperature (about 25˚C), the vapor rises to the condenser and heat energy is conducted to water (inside the tank). When vapor is cooled down, and becomes condensate, falling back to the bottom of heat pipe. By continuously circulating in this way, heat is carried from outside to the water inside the tank.
The characteristic of heat pipe solar water heater:
1. Certified by Solar Keymark (EN12976), click here, ISO, CE
2. Multifunctional support for both flat and slope roof installation.
3. Low temperature resistance, can be used in -50℃ condition.
4. Easy to replace individual tube in the event of tube damaged.
5. High pressure system, directly connected with city water without booster pump
6. Tank withstanding high pressure (0.6MPa), comfortable shower.
7. No Glycol, No Chemicals.

TVRheinland  Solar Keymark  CE  ISO 2015 Logo  IAF Logo  CNAS Logo

Heat pipe solar water heater working principle video:




Heat pipe solar water heater specification
1. Inner tank: Stainless steel SS304-2B / SS316L.
2. Outer tank: Galvanized steel / stainless steel / PVDF.
3. Insulation layer: Polyurethane foam, 41 kg/m3 high density.
4. Support: Painted galvanized steel / Aluminum alloy / Stainless steel.
5. Heat pipe: Red copper.
6. Heat pipe sleeve: Red Copper / Stainless Steel SS316L.
7. Heat transfer fin: United aluminium sheet.
8. Vacuum tube: Borosilicate glass 3.3, ALN/AIN-SS/CU coating, Φ58×1800mm.
9. Working pressure: 6 Bar; Testing pressure: 10 Bar.
10. Capacity: 50L-350L available.

Heat Pipe Solar Water Heater Anatomical Map
Heat pipe solar water heater anatomical map

Pressurized Solar Water Heater Installation Display Flat Roof
Pressurized solar water heater installation display flat roof

Heat Pipe Solar Water Heater Installation Display Sloped Roof
Heat pipe solar water heater installation display sloped roof

Parameter table:
Model Vacuum tube Capacity(L) Person No. Loading Qty. (set)
Dia. / Len. (mm) Qty. (pcs) 20GP 40GP 40HQ
JPH-10 58 1800 10 100 2 80 168 188
JPH-12 58 1800 12 120 3 66 140 160
JPH-15 58 1800 15 150 3 56 122 140
JPH-18 58 1800 18 180 3 50 96 115
JPH-20 58 1800 20 200 4 48 92 106
JPH-24 58 1800 24 240 5 36 80 90
JPH-30 58 1800 30 300 6 28 64 72
T/P Valve
Temperature & Pressure relief valve
- Used for tank pressure release
- Working temperature: 90°C
- Working pressure: 6 Bar
  Check Valve
Check valve
- Used for control one-way flow and prevent water from flowing back
- Material: brass
Item No. Size Quantity Item No. Size Quantity
812 007 066 3/4 inch 1 unit 812 007 002 3/4 inch 1 unit

Magnesium Rod
Magnesium rod
- Used for tank protection
- Φ22 x 300mm length(small)
- Φ28 x 600mm length(big)
  Heat Transfer Paste
Thermally conductive silicone grease
- Used for improving thermal transfer at the interface between heat pipe and header pipe
- Color: White
- Working temperature:  -50~250℃
Item No. Size Quantity Item No. Weight Quantity
812 801 002 3/4 inch, 1 inch 1 unit  812 801 022 60g 1 unit

Optional Accessories:
SR609C Intelligent Controller
Controller (luxury version)
- Used for pressure solar water heater
- Automatic operation
- Water temperature display
- Intelligent control electric heater
  TK-7Y Intelligent Controller
Controller (economic version)
- Used for pressure solar water heater
- Automatic operation
- Water temperature display
- Intelligent control electric heater
Item No. Voltage Quantity Item No. Voltage Quantity
812 007 609 110V/ 220V 1 unit 812 007 607 110V/ 220V 1 unit

Incoloy 800 Electric Heater
Electric heater
- Material: Incoloy 800
- Super anti-corrosion& heat conduction, dry-heat resistant
- Connection size: 1 inch
  Thermostatic Valve
Thermostatic mixing valve
- Material: Nickle plated brass
- Cold water temperature: 5-29℃
- Hot water temperature: 50-95℃
- Regulating temperature: 35-55℃
- Working pressure: 0.03-1 Mpa
Item No. Power Quantity Item No. Size Quantity
812 900 191 1500W, 2500W 1 unit 812 007 052 3/4 inch 1 unit

Expansion Vessel
Expansion vessel
- Capacity: 18/24/60 L
- Max. working pressure: 10 Bar
- Working temperature: -10~90℃
- Pre-charge: 2 Bar
- Connection size: 3/4 inch
  Water Filter
Water filter
- Used for soften cold water
- Filter with siliphos
Item No. Size Quantity Item No. Size Quantity
812 003 012 3/4 inch 1 unit 812 007 025 3/4 inch 1 unit
